Anping Chuangqian Wire Mesh Co., Ltd
Size: 3m x 1m x 1m
Aperture: 6*8cm, 8*10cm, 10*12cm
Naam van product: Gabion
Brand Name: Zhuoda Gabion
Wire Gauge: 2.2mm;2.7mm;3.0mm
Selvedge Wire: 2.7mm;3.4mm;3.9mm
Lacing Wire: 2.2mm
Verzenden: by Sea for Bulk ;by Air/Express for Small
certificaat: Iso9001:2008
Transport Package: Bundles for FCL; Pallets for LCL
Specification: EN10223-3; ASTM A975
Origin: Hebei, China (Mainland)
GS-code: 73144100
productiecapaciteit: 1000sets/Week
Material: Galvanized Iron Wire
Toepassing: Gabion Mesh, Gabions, Construction Wire Mesh
Hole Shape: Hexagonal
Gebruik: Civil Engineering
Technics: Woven
Oppervlakte behandeling: Galvanized
Model nr.: CQ Gabion
Trademark: CQ Gabion
| Verkoopeenheden | : | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

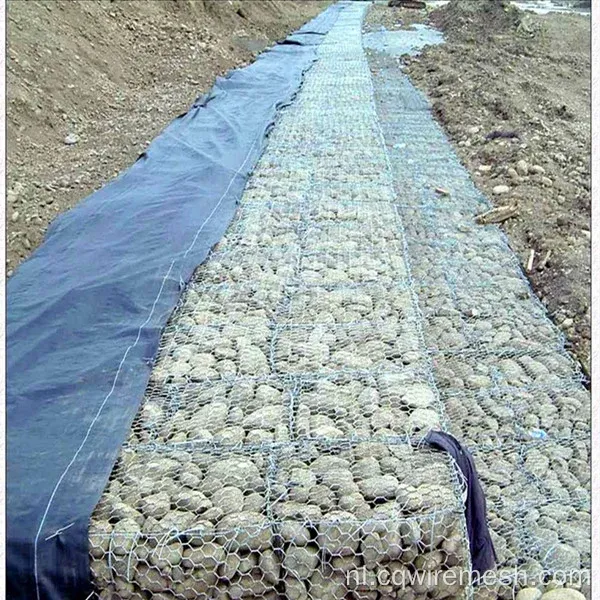

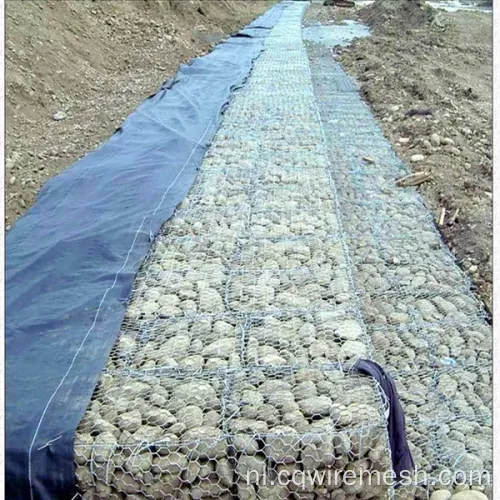

Gabionboxen zijn gemaakt van zware gegalvaniseerde draad / Znal (golfen) gecoate draad / PVC -gecoate draden, de maasvorm is zeshoekige stijl. De Gabion -dozen worden op grote schaal gebruikt in hellingsbescherming, fundering putvoorziening, bergholding, rivier en dammen schuren bescherming.
Gabionboxen kunnen worden geleverd in verschillende lengtes, breedtes en hoogten. Om de dozen te versterken, moeten alle randen van de structuur worden geëlvoedeerd met draad met een grotere diameter.
|
Gabion cages |
|||
|
Opening(mm) |
Wire diameter metal wire(mm) |
Wire diameter PVC coated/inner /outside(mm) |
Strands |
|
60 x 80 |
f2.0/2.8 |
f2.0/3.0-f2.5/3.5 |
3 |
|
80 x 100 |
f2.0/3.2 |
f2.0/3.2-f2.8/3.8 |
3 |
|
80 x 120 |
f2.0/3.2 |
f2.0/3.2-f2.8/3.8 |
3 |
|
100 x 120 |
f2.0/3.4 |
f2.0/3.0-f2.8/3.8 |
3 |
|
100 x 150 |
f2.0/3.4 |
f2.0/3.0-f2.8/3.8 |
3 |
|
120 x 150 |
f2.0/4.0 |
f2.0/3.0-f3.4/3.4 |
3 |
|
Type 1 |
Weave Gabion baskets |
|
Material |
galvanized wire ,galfan wire and PVC coated wire , |
|
Gabion mesh wire |
2.2mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm,etc. |
|
Gabion selvedge wire |
2.4mm,2.7mm,3mm,3.4mm,4mm,etc. |
|
Gabion lacing wire |
normally 2.2mm |
|
Gabion box mesh hole |
6*8cm,7*9cm,8*10cm,10*12cm,11*13cm,12*15cm,etc. |
|
Zinc coating |
40-260g/m2 |
|
Gabion box PVC color |
darkgree, gray ,black , etc. |
|
Type 2 |
Welded gabion box |
|
Finishing |
heavy duty galvanized or galfan galvanized |
|
Surface treatment |
electro galvanized, hot-dipped galvanized, pvc coated, stainless steel |
|
Wire diameter |
2.7--5mm |
|
Mesh size/opening |
37.5x75mm, 50x50mm, 75x75mm, 100x50mm, 100x100mm |
|
Zinc coating |
40-290g/mm2 |
Verpakkingsdetails:
1) Buiten met plastic film
2) in bundel
3) volgens het speciale verzoek van de klant
Verzenden:
Monsters worden verzonden door Express Service - DHL, EMS, UPS, TNT of FEDEX.
1, door Counier, zoals DHL, PUS, FedEx, DTC. Gebruikelijke 5-7 dagen;
2, door de lucht naar de luchthaven, komen gebruik van 3-5 dagen aan;
3, over zee naar de zeeport, gebruikelijke 25-45 dagen
Als je de prijs nodig hebt, vertel me dan de maat, stuur je aanvraag naar ons!
|
Export Manager |
Jing Zhao |
|
Mobile/WhatsApp |
+86 18832808868 |
|
|
