Geperforeerd metaalgaas van hoge kwaliteit

Basis informatie.

Modelnr.

YK-PM-ZBW-001

Steekproef

Verkrijgbaar

Transportpakket

Pallet

Specificatie

1.22

Handelsmerk

YK

Oorsprong

China

HS -code

7314500000

Productiecapaciteit

1000 m²/week

product beschrijving

Geperforeerd metaal

product beschrijving

Geperforeerd metaal, een van de meest veelzijdige en stijlvolle metaal beschermt in ons leven, het is een laken
of spoel van materiaal met verschillende gatgroottes, hoge sterkte-gewichtsverhouding, anti-corrosie, goed
Ventilatie, lichtpenetratie en stabiliteit. Geperforeerd metaal is gemaakt van koolstofstaal, roestvrij staal (302, 304, 304L, 316, 316L), aluminium, koper en messing. Bovendien kan geperforeerd metaal worden gegalvaniseerd of PVC-gecoat, wat metaal extra beveiliging en anti-corrosie geeft.

Generally, perforated metal hole patterns include round holes, square holes, slotted holes, hexagonal holes and decorative holes. Various hole patterns provide additional aesthetic performance. With various materials and hole patterns, perforated metal can be used as architectural metal or decorative metal. It is mainly applied for screen, guard, filter, vent, signage, partition, enclosure,building facade and noise barrier.   As a leading manufacturer and supplier of perforated metal, we can provide an extensive range of perforated metal products that satisfy your requirements. Please don't hesitate to contact us.

FEATURE

Ventilation, light and air penetration and anti-sand property. High strength and security. Perfect anti-corrosion property and rust resistance. Various choices in opening sizes/areas, gauges and materials, hole shapes/patterns. Wide application for architectural and decorative aspects. Aesthetic appearance. Low maintenance. Easy installation.

Perforated Metal Specification
Material	Plain steel, mild carbon steel, aluminum, stainless steel (302, 304, 304L, 316, 316L), brass, copper.
Surface Treatment	Galvanized, PE/PVC coated and powder coating.
Thickness	0.2-25mm
Standard Size	1000*2000 mm, 1000 *2400 mm and 1200*2400 mm.
Hole Patterns	Round hole, square hole, slotted hole, hexagonal hole and decorative hole.
Hole Diameter	0.2-100mm
Packing	Coiled plate: in water-proof plastic bags then in wood pallets. Flat plate: in plastic film then in wood pallets.

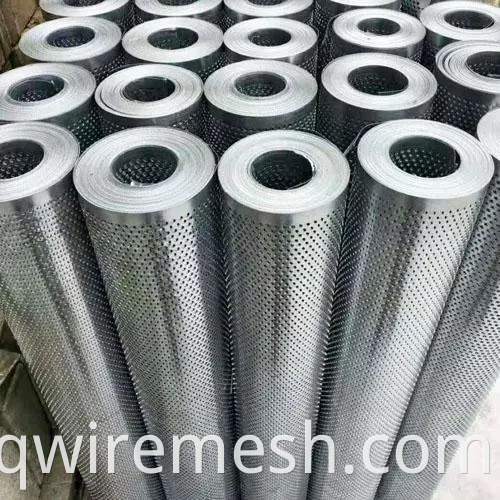

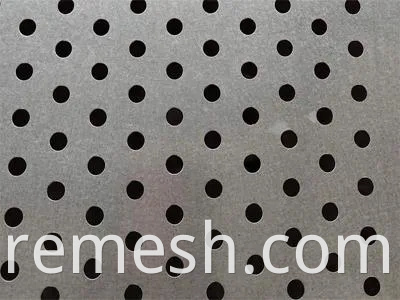

Round Hole Perforated Metal
	Hole size: 0.027" - 1.0". Hole centres: 0.05" - 1.25". Hole pattern: staggered and straight row. Sheet width: 24" - 60". Sheet length: 24"- 144". Open area: 5% - 63%.

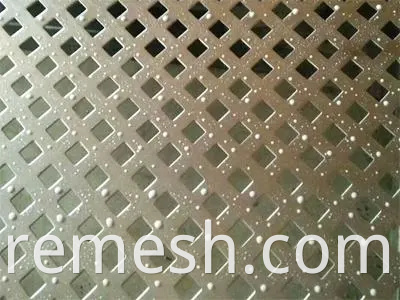

Square Hole Perforated Metal
Thickness: 11-22 gauge. Hole size: 0.2" - 0.75". Hole centres: 0.5" - 1". Hole pattern: staggered or straight row. Open area: 11% - 56%. Width: 36" - 48". Length: 24" - 120".

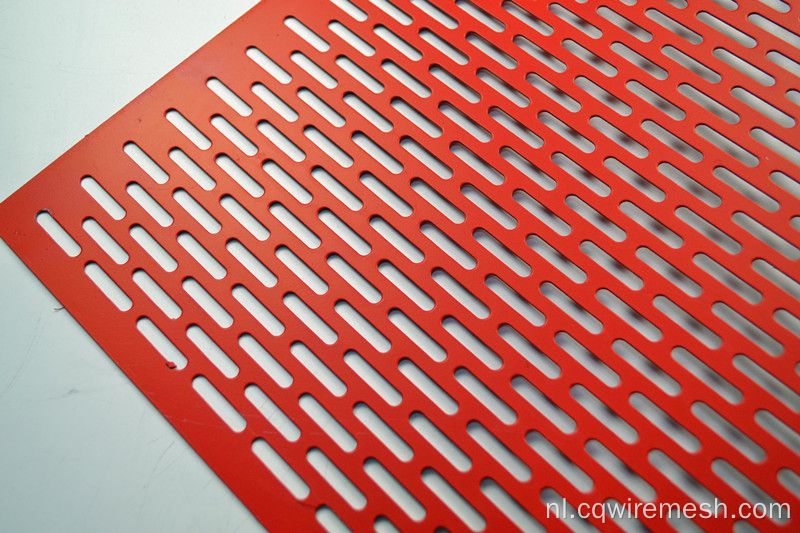

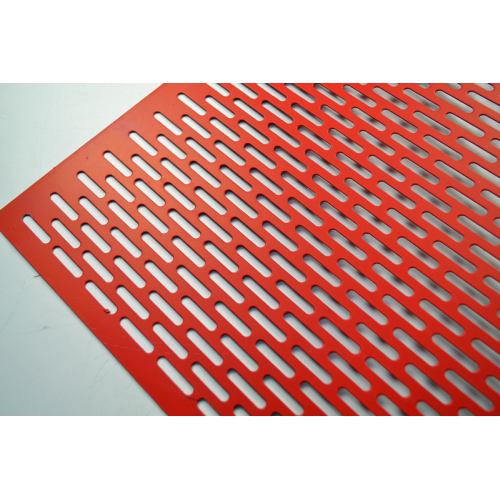

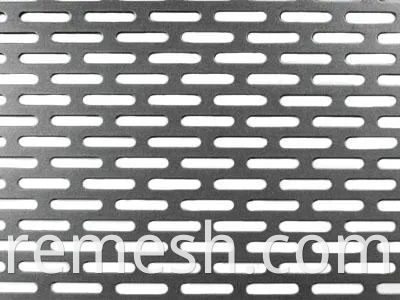

Slotted Hole Perforated Metal
	Thickness: 14-22 gauge. Hole pattern: side staggered and straight row. Slot width: 0.125" - 0.2". Slot length: 0.1" - 0.75". Slot shape: round end and square end. Slot side bar: 0.125" - 0.25". Slot end bar: 0.125" - 0.25". Open area: 41% - 74%. Panel width: 36". Panel length: 24" - 120"

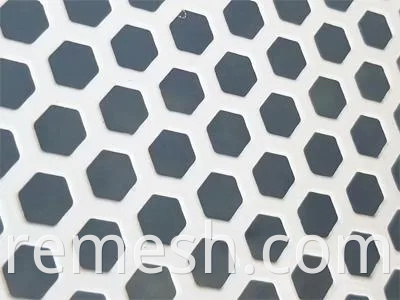

Hexagonal Hole Perforated Metal
Thickness: 14-22 gauge. Hole size: 0.25" - 0.5". Hole centres: 0.2813" - 0.5625". Hole pattern: staggered row. Open area: 35% - 80%. Width: 25" - 48". Length: 24" - 120".

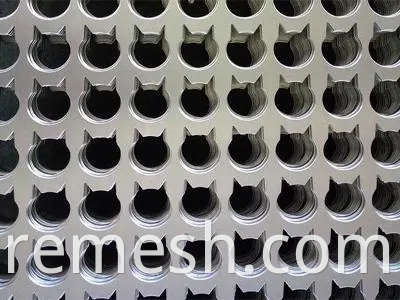

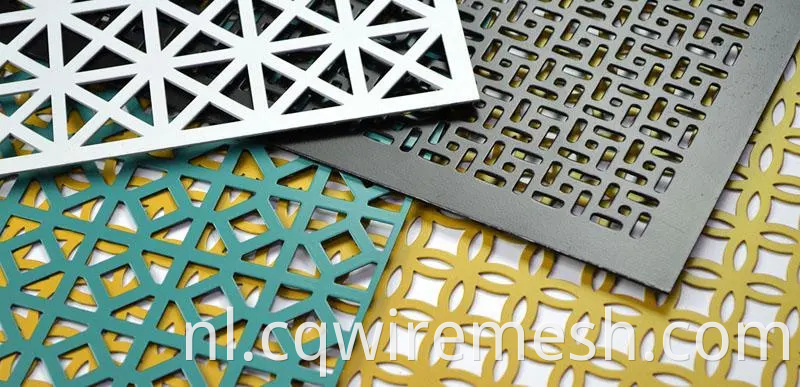

Decorative Hole Perforated Metal
	Open area: 35% - 68%. Thickness: 11 - 24 gauge. Width: 36" - 48". Length (span for grating): 24" - 120".

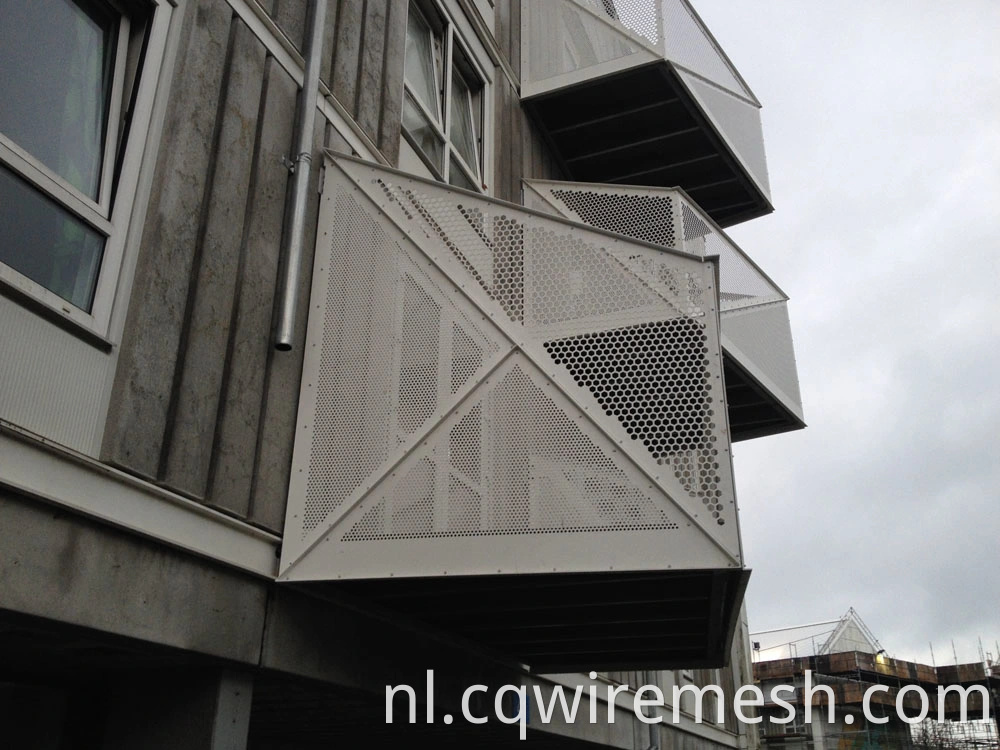

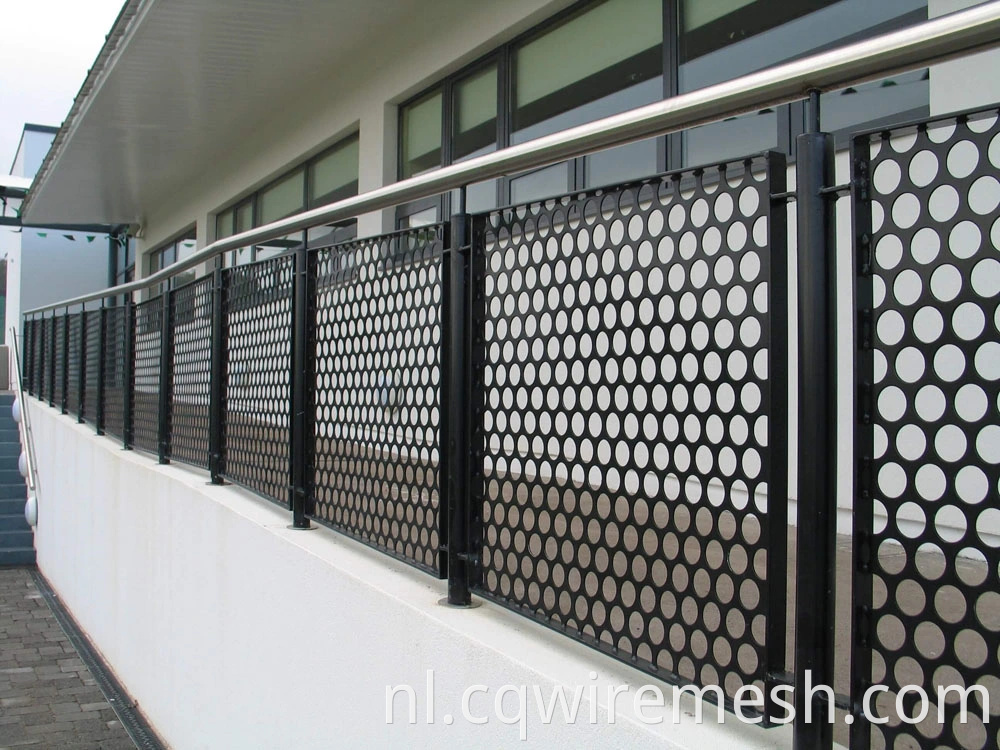

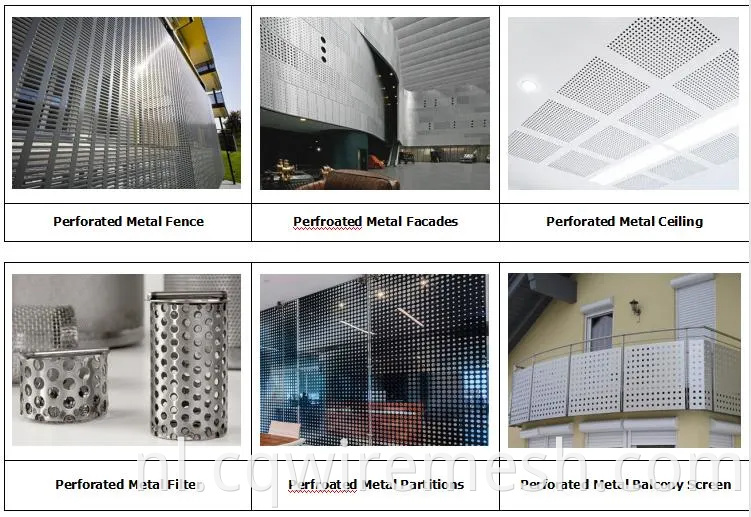

Geperforeerde metalen toepassing
Geperforeerde metalen worden gebruikt in de productietoepassingen van interieur- en exterieurontwerp (zowel functioneel als decoratief). Industrieën die gebruik maken van geperforeerde metalen omvatten filtratie, isolatie, beveiliging en barrière, constructie, meubels, akoestiek, materiaalontwikkeling, automotive engineering, chemisch en energie, foodservice, afvalbeheer en automotive engineering. De nummer één industrie voor geperforeerde metalen is architectonisch ontwerp.
